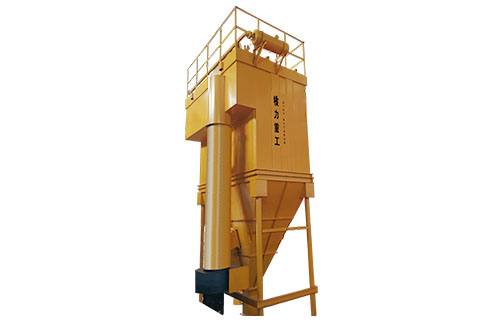

数控粉尘收除器:
该粉尘收除器主要由底部钢结构、灰斗、上箱体、箱体、进出风口、滤袋、清灰装置、电气控制等组成。配置变频控制器，应用变频技术，调节风机转速、调节粉尘收除能力。进行粉、砂分离，代替水洗节省水资源，避免粉尘或污水排放污染环境，实现环保生产。回收的粉尘又可用于环保砖、水泥、干粉砂浆的原料，实现粉、砂分别利用，提高石料资源利用率。
Numerical control dust collector
:
A numerical control dust collector is consisted of steel bottom
structure , dust hopper, upper case , case , air inlet and outlet , bag filter,
dust clearing device , electric control system and so on. A variable frequency
controller is configured. And variable frequency technology is used to
regulate the fan rotation speed and the dust collecting capacity . Separate
dust and sands instead of dust elimination by water washing , so that water
resource will be saved ,and the emission of dust or effluent to pollute the
environment will be avoided , and environment-friendly production will be
realized . Collected dust will be used as raw material for production of
environment-friendly bricks , cement and dry powder mortar, separated using of
stone dust and sands will be realized , increasing the utilization rate of
stone resource.
技术参数Technical parameters
型号规格
Type | 处理风量
Air
throughput | 总过滤
面积
Total
filtration
area | 除尘室数
Number of
dust
Elimination chambers | 滤袋总数
Total
filter bags | 除尘效率
Dust
elimination
efficiency | 风机
功率
Fan
power | 重量
Weight | 外型尺寸
Exterior
Dimensions | 备 注
Remarks |
（m3/h） | （m2） | （个） | （个） | （%） | （kW） | （t） | 长宽高(m)
L×W×H
(m) |
SKQM64×6-A | 26700 | 372 | 6 | 384 | 99.5-99.999 | 37 | 10.00 |
|
|
SKQM64×5-A | 22300 | 310 | 5 | 320 | 30 | 8.50 |
|
SKQM32×6-A | 13390 | 186 | 6 | 192 | 15 | 6.00 |
|
SKQM32×5-A | 11160 | 155 | 5 | 160 | 15 | 4.50 |
|
