玻璃破碎机 Glass Crusher

产品中心 > 玻璃破碎机 Glass Crusher

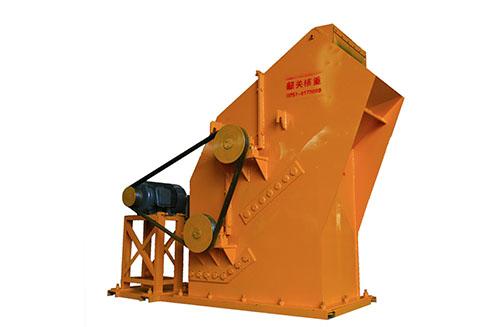

玻璃破碎机 Glass Crusher

玻璃破碎机:
  玻璃破碎机,是我公司为废旧家电回收再利用处理生产线配套而自主研发的玻璃破碎机,已获国家专利。
  该机是运用锤式破碎机的工作原理而科学设计,根据玻璃硬而脆的物理特性,通过转子的旋转,使转子的锤头锤打玻璃。采用双转子实现多点、多次重复打击所通过的玻璃(玻璃的通过应用自由滚筒输送,实现边输送边打击)。从而保证破碎后的玻璃粒度一次成形(产成品粒度≤30mm),避免筛分、输送返复破碎工艺,节省成本和场地。主要用于废旧电视机、电脑显示器玻璃、门窗玻璃、镜画玻璃等面(体)积大的玻璃破碎。
  该机具有结构新颖、简单;操作、维修方便;成形快、产量大、效率高、能耗低;是破碎废旧玻璃的理想设备。

Glass Crushing Machine:
  Glass crushing machine is independently researched and developed  by our company as a corollary equipment  for  the production line for recycling  waste  household  appliances ,  and  it  has been awarded national patent.
  The machine is scientifically designed according to the working principle  of  hammer crusher . According to  the physical property of glass -- hard and brittle, the hammer heads installed on the rotors strike  the glass when the  rotors rotate .    Dual rotors are adopted to achieve multipoint and repeated hammering on the  passing glass (The glass  is  conveyed by free rollers  to  the hammering zone. The glass will be struck by hammers as it  is conveyed to the hammering zone.) .Therefore the required sizes of crushed glass  can be achieved one time    (the size of the crushed glass product is less than or equal to 30mm),  eliminating the   screening process and repeated crushing process for  returned oversize glass by conveyors , saving cost and working  space . The machine is mainly used to crush the glass with large area and volume  from waste television sets, computer  monitors, door and window , and mirror drawing .
  Glass crushing machine has the following advantages: simple and novel structure; convenient to operate and repair ; quick shaping, large output and high efficiency as well as low energy consumption. It is ideal for crushing waste glass.



技术参数Technical  parameters




型号规格
Type

进料粒度
Feed
size

出料粒度
Discharge
size

生产能力
Capacity

转子直径
Rotor
diameter

转子转速
Rotor
speed

电机功率
Electromotor
power

重量
Weight

外型尺寸
Exterior
Dimensions


Remarks

(mm)

(mm)

(t/h)

(mm)

(r/min)

(kw)

(t)

长宽高(m)
L×W×H
(m)

BPJ1208

1200×800

≤50

15-30

1000/750

450

18.5

6.0

2.40×1.80×2.90

配Y系列电机
不配启动柜
Y series motor is configured .
Starter cabinet is not configured.

BPJ0806

800×600

≤50

10-20

1000/750

450

15.0

4.2

2.30×1.40×2.70
