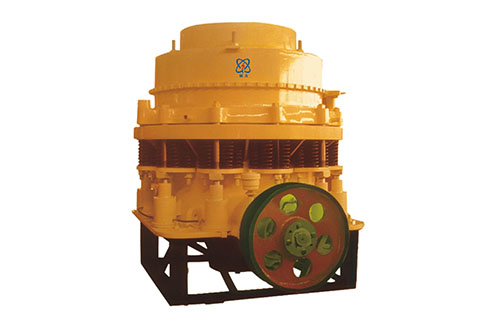

新型圆锥破碎机 New Type Cone Crusher

圆锥破碎机：是破碎粒度≤300mm、出料粒度≤65mm石料最佳机械。使破碎圆锥的破碎壁时而靠近又时而离开固装在调整套上的扎臼壁表面，使矿石在破碎腔内不断受到冲击，挤压和弯曲作用而实现矿石的破碎。

      S400电机功率400KW，进料粒径105-460mm，每小时碎石500-1000吨；

      S240电机功率240KW，进料粒径80-360mm，每小时碎石300-600吨；

      S220电机功率220KW，进料粒径75-260mm，每小时碎石200-400吨；

      S155电机功率185KW，进料粒径60-250mm，每小时碎石150-300吨:

      S75电机功率75KW，进料粒径40-175mm，每小时碎石75-150吨。

      RC1650电机功率280KW，进料粒径130-235mm，每小时碎石180-580吨；

      RC1400电机功率220KW，进料粒径115-215mm，每小时碎石150-440吨。

　　New Type Cone Crusher :
　　New type cone crusher works in this way: The electromotor of the cone crusher drives the mantle to make periodic swing movement around  a fixed point through the pulley ,   coupling,  transmission  shaft  and eccentric  sleeve ;  and consequently the surface of the mantle approaches and leaves the surface of the concave fixed on the adjusting sleeve  now and then. So that the stones are continuously impacted , squeezed , bent and finally crushed inside the crushing  cavity.
   The machine has the following advantages: huge crushing force, high  production  efficiency, low operational cost ,convenient to adjust the space between the mantle and the concave as well as  uniform  product sizes. It is suitable for crushing  stones with   medium or over medium hardness  and with feeding sizes of no more than 300 mm and discharging  sizes of  no more than 65 mm. The type of the crushing cavity can be decided by the stone crushing requirements . The standard type is applied to medium  crushing; the medium type is applied to medium  or fine crushing；the short head type is applied to fine crushing(however, the specific feeding and discharging sizes  should be decided by the  stone hardness and by choosing crusher models .).
　　The labor strength of workers has been reduced by adopting a multi-cylinder hydraulic  chamber clearing system. Locking  becomes  more reliable with two ways of locking, namely hydraulic butterfly spring cylinder locking and mechanic locking. Various  types of crushing cavity can meet the users'  different  requirements. Dust pollution to the lubricating oil   has been  avoided maximally  by adopting compensable grease  sealing, so that    all parts of the crusher can operate more reliably and serve for  longer  lives. The safety system consisting of  multi-group springs allows unbreakable matters such as  iron blocks go through the crushing cavity without damage to the crusher, resulting  to  safer and  more reliable operation .

技术参数 Technical  parameters
